What Is FT‑QPSI in Verifire Zygo Mx Software: Complete Guide to Vibration‑Robust Interferometry
1. Introduction: Understanding FT‑QPSI in Interferometry
When someone searches for “what is FT‑QPSI in Verifire Zygo Mx software”, they are usually trying to understand a specialized data acquisition mode used in precision optical metrology. This mode is part of the ZYGO Verifire interferometer ecosystem paired with Mx software, and it makes it possible to collect highly accurate optical measurements even in environments that are not perfectly vibration‑free — such as on a manufacturing floor or near machinery.
Optical interferometry is one of the most precise measurement techniques in science and industry, capable of detecting surface irregularities and phase differences on the order of nanometers. However, even tiny vibrations — vibrations that might be invisible to the human eye — can distort interferometric measurements. This is where advanced acquisition technologies like QPSI and FT‑QPSI come into play.
2. Fundamentals of Interferometry and Measurement Challenges
To appreciate the importance of FT‑QPSI, you first need a basic understanding of interferometry.
Interferometry uses the phenomenon of interference — when two coherent light beams overlap — to reveal precise information about surface shape, transmitted wavefronts, and thickness variations of optical materials. A classic example is Phase‑Shifting Interferometry (PSI), where a reference beam and a test beam generate fringe patterns while phase data is sampled during controlled shifts. PSI is powerful and widely used, but it has a critical weakness: it assumes the environment is perfectly stable during data collection.
Without a vibration‑robust acquisition method, interferometers often produce noisy interference phase maps, or in worst cases, fail to complete the measurement at all due to fringe print‑through, where mechanical motion gets “printed” right into the data.
3. What Is QPSI: The Foundation of Vibration‑Robust Acquisition
Before we explain “what is FT‑QPSI in Verifire Zygo Mx software”, it’s critical to understand QPSI™ (Quick Phase‑Shifting Interferometry) — the predecessor technology upon which FT‑QPSI builds.
QPSI is a model‑based acquisition technique that was introduced to overcome PSI’s sensitivity to small environmental vibrations. Unlike standard PSI, QPSI uses an algorithm that anticipates and compensates for rigid‑body motion that would otherwise distort the phase data. It allows reliable measurements without special mechanical isolation and does not sacrifice measurement speed or lateral resolution.
In Verifire and other ZYGO interferometers, QPSI is included as standard and is particularly valuable on the shop floor, where perfect vibration control is impractical. QPSI effectively reduces noise and ripple in phase measurements, enabling consistent data collection in everyday industrial environments.
4. What Is FT‑QPSI in Verifire Zygo Mx Software: Breaking It Down
Now that you have the basics of interferometry and QPSI, let’s answer the central question:
What is FT‑QPSI in Verifire Zygo Mx software?
FT‑QPSI stands for “Fourier Transform‑based Quick Phase‑Shifting Interferometry”, and it represents an enhanced version of the original QPSI acquisition mode that extends vibration‑robust capabilities to multi‑surface optical measurements, such as simultaneous front and back surface data, optical thickness variation, and homogeneity measurements.
In simpler words:
FT‑QPSI is a measurement mode in the ZYGO Verifire MST interferometer, enabled through Mx software, that maintains reliable, high‑precision data collection even when multiple interfering surfaces are present and the environment is not vibration‑isolated.
Unlike basic QPSI, which is optimized for a single interference cavity, FT‑QPSI uses an expanded physical model to understand and interpret interference patterns that arise from complex samples. This could include transparent plates where front and back surfaces generate overlapping interference data, or thin glass where thickness variations are being measured.
5. Why FT‑QPSI Matters: Applications and Advantages
FT‑QPSI is not just a technical term — it has profound practical value in optical metrology:
- It allows accurate multi‑surface measurements that would otherwise be masked by vibration or overlap.
- It minimizes or eliminates noise artifacts caused by vibration, which is especially critical in production environments.
- It supports measurements that include optical thickness variation and homogeneity — metrics critical for quality assurance in optics manufacturing.
Without FT‑QPSI, interferometry on multi‑surface optics would typically require either a highly controlled environment or specialized mechanical vibration isolation, both of which can add significant time and cost to manufacturing and quality workflows.
6. How FT‑QPSI Works Within Verifire and Mx Software
Although the details are mathematically complex, the underlying principle is approachable:
At its core, FT‑QPSI expands the model used in standard QPSI to recognize that more than one optical surface can generate interfering light. When an MST interferometer collects phase data from a sample with several surfaces, FT‑QPSI uses algorithms that account for the optical paths of multiple reflections simultaneously and decouple them from environmental motion.
This model‑based technique interprets the composite fringes and reconstructs accurate measurements for each surface and the material in between, all while tolerating vibration levels that would swamp traditional PSI.
7. Verifire MST: The Hardware Side of Multi‑Surface Interferometry
The Zygo Corporation Verifire™ MST Interferometer is specifically designed for Multi‑Surface Test (MST) applications, where multiple optical surfaces must be measured and analyzed.
In MST applications, one part might produce more than one fringe pattern — for example, the front and back surfaces of a transparent substrate, plus the transmitted wavefront in between. FT‑QPSI acquisition makes such measurements possible in environments that would challenge or defeat standard temporal PSI.
For transparent parts, thin‑film optics, or material quality assessments, the ability to simultaneously extract meaningful surface, thickness, and homogeneity data is a powerful capability — and FT‑QPSI ensures this can be done without optimizing the laboratory environment for vibration.

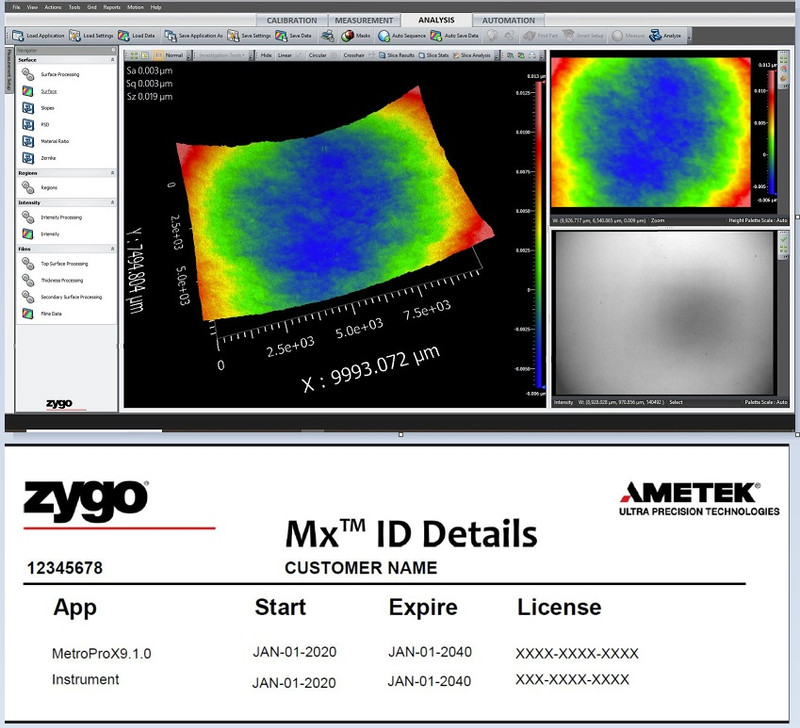

8. Practical Use: FT‑QPSI in Mx Software
The Mx™ software is ZYGO’s flagship metrology platform, integrating measurement configuration, data acquisition, and advanced analysis tools. When you select the FT‑QPSI acquisition mode in Mx, the software:
- Activates the expanded vibration‑robust acquisition algorithms.
- Collects interferometric data across multiple surfaces with a single measurement sequence.
- Outputs detailed phase maps that distinguish between front surface form, back surface form, thickness variation, and material homogeneity.
Instead of performing multiple measurements and merging results manually later, Mx with FT‑QPSI automates the acquisition and modeling, producing results that are more accurate and repeatable in realistic environments.
9. FT‑QPSI vs PCR and Traditional PSI: A Clear Table
To help you see the difference, here’s how FT‑QPSI compares to classic PSI and basic QPSI in a simplified table:
| Feature | PSI | QPSI | FT‑QPSI |
|---|---|---|---|
| Vibration Robustness | Low | Medium | High |
| Multi‑Surface Support | No | No | Yes |
| Single Surface Measurement | Yes | Yes | Yes |
| Thickness & Homogeneity | No | No | Yes |
| Ideal for Manufacturing | No | Yes | Yes |
| Requires Isolation | Yes | No | No |
This table highlights how FT‑QPSI inherits the vibration robustness of QPSI but extends it to multi‑surface measurements, making it far more versatile for complex optical testing.
10. Typical Measurement Workflow With FT‑QPSI
In practice, using FT‑QPSI in Verifire with Mx software involves a workflow something like this:
- Prepare the Sample: Place the optical component (e.g., thin glass or lens assembly) into the Verifire MST test fixture.
- Select Acquisition Mode: In Mx software, choose FT‑QPSI as your acquisition mode.
- Configure Parameters: Enter any part‑specific parameters such as index of refraction or expected thickness range.
- Capture Interferogram: Run the acquisition sequence — Mx software handles data capture.
- Data Processing: The software applies the FT‑QPSI model to decouple interference data from vibration and multi‑surface contributions.
- Review Results: You receive detailed phase maps showing surface form, thickness variation, and homogeneity information.
Because FT‑QPSI adjusts its model so robustly, step 4 — data capture — is typically completed without needing special vibration isolation equipment, saving both time and facility cost.
11. Benefits of Using FT‑QPSI
There are several important practical benefits you gain by using FT‑QPSI:
- Reliable Measurements in Real‑World Conditions: Works in manufacturing areas without lab‑grade vibration isolation.
- Comprehensive Surface Characterization: Front surface, back surface, thickness, and homogeneity are quantified more accurately.
- Improved Throughput: Measurements that used to require multiple passes or special setups can now be done in a single, robust acquisition cycle.
- Reduced Need for Isolation or Calibration: The algorithm compensates for motion automatically.
12. Limitations and Considerations
No technology is perfect, and FT‑QPSI also has considerations worth noting:
- It requires an interferometer capable of MST acquisition (like Verifire MST).
- The algorithm may be most effective when properly set up with Mx software parameters tailored to the specific optical geometry.
- Extreme vibration beyond typical shop‑floor conditions may still require isolation or alternative acquisition modes like DynaPhase™.
13. Conclusion
In summary, what is FT‑QPSI in Verifire Zygo Mx software? FT‑QPSI is a vibration‑robust, multi‑surface acquisition algorithm that enables accurate interferometric measurements in conditions where traditional PSI would fail and where standard QPSI is insufficient due to multiple interfering surfaces. It is especially valuable in optical manufacturing and quality control environments, and when used through Mx software with a Verifire MST interferometer, it streamlines measurement workflows while delivering high‑precision data solutions even in the presence of vibration.
